Code:

BO16F01KNX

Device BO16F01KNX is a DIN rail EIB / KNX actuators with 16 relay outputs that can be configured as:

• 16 outputs for light / load control

• 16 channels for valve in PWM (solenoid actuators)

• 8 channels for roller shutter / venetian control

• 8 channels for 3-point valve control

• 4 fan coil actuators 2-pipes


It is also possible to combine 2 or 3 relays with logic interlock for 4-pipe / 3-speed fan coil control or combine groups of relays (up to 8) for special function using logic interlock .

Code:

BO16F01KNX-SD

Version BO16F01KNX-SD includes a microSD card reade rincludes a microSD card reader with which you can save the programming of the device to be able to restore it on an identical device in order to avoid programming in field or to allow a fast restore in case of failure.

Code:

IO16F01KNX

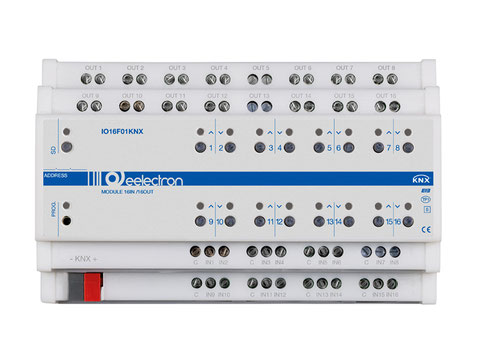

Device  IO16F01KNX is a DIN rail EIB / KNX actuators with 16 relay outputs that can be configured as:

• 16 outputs for light / load control
• 8 channels for roller shutter / venetian control
• 8 channels for 3-point valve control
• 4 fan coil actuators 2-pipes

It is also possible to combine 2 or 3 relays with logic interlock for 4-pipe / 3-speed fan coil control or combine groups of relays (up to 8) for special function using logic interlock .

The device also includes 16 inputs that can be connected to pushbuttons, switches, or be configured as outputs to activate individual signalling LEDs (eelectron code LD00A01ACC / LD00A11ACC) and can be used for on / off, dimming, shutters or venetian blinds / scenarios, sequences, step-by-step commands, etc. 4 inputs (of the 16) are configurable as analogue for the connection of NTC temperature probes (see probes eelectron code TS00A01ACC / TS00B01ACC) with which to send 4 temperature measurements on the bus and manage a simple on / off controls (e.g. thermo furniture).

It is also possible to enable 2 complete thermostat modules if inputs 3 ÷ 8 and 11 ÷ 16 are not used; each thermostat module manages 2 stages with integrated PI controller for driving heating and cooling equipment, valves, 2 and 4-pipe fan coils, etc.

Code:

IO16F01KNX-SD

Version IO16F01KNX-SD includes a microSD card reade rincludes a microSD card reader with which you can save the programming of the device to be able to restore it on an identical device in order to avoid programming in field or to allow a fast restore in case of failure.

Code:

IO88E01KNX

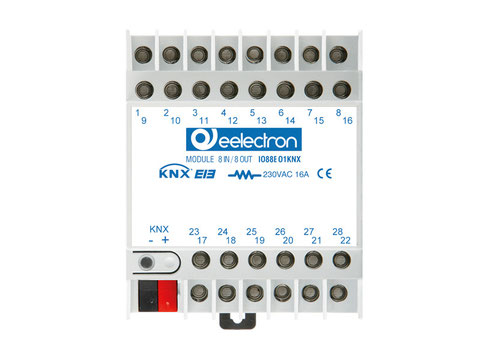

The DIN RAIL 8 Input / 8 Output Module IO88E01KNX is an EIB/KNX DIN rail mounting device useful to interface commands (e.g. push buttons) or loads (e.g. lamps) for any kind of applications. The device is equipped with 8 binary inputs (potential free) and 8 binary relay outputs. Inputs can be connected to conventional switching devices, e.g. push buttons, switches, floating contacts, for switching functions with pulse edge evaluation (e.g. rising or falling edge, toggle…). Inputs can be configured with ETS SW, as output to drive Leds. Inputs can be used to for on/off commands, dimming, shutter control, scene recall and control; outputs include switching function, scene recall and control logic function.

Device 8 outputs on board can be configured:

• Each output can be configured independently
  for load control (R1 to R8)
•
Each output can be configured independently for ON / OFF or continuous switching (PWM) for Electric valves (solenoid actuators) (EV1 to EV8)
•
Outputs can be configured in pairs for the management of roller shutters and blinds; up to 4 channels (Channels A to D)

• Outputs can be configured in pairs for management of Motor Reductor or for solenoid valves with 3-point control or for ventilating grille; up to 4 channels (Channels A to D)
• Fan Coil Actuator for 2/4 pipes systems for Heating / Cooling with 3 speed motors) (uses relay from 1 to 5)

Code:

IO22D01KNX - IO44D01KNX - IO62D01KNX

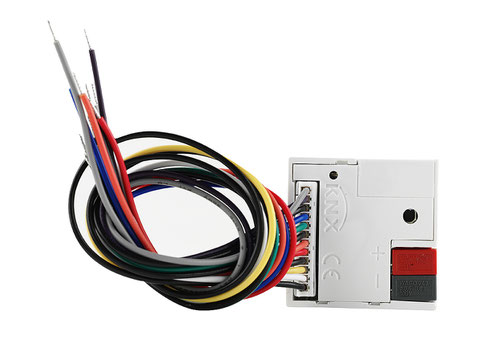

The device is dedicated to interface dry contacts with 2,4 or 6 input channels, such as sensors, conventional push buttons and 2 or 4 low voltage/current output channels to drive LED signal indicator lamps.These devices are extre- mely compact size (only 34 x 34 x 11 mm) and can also be used in installations where the inwall space available is reduced. The digital inputs can interface sensors, traditional buttons, etc; the 4 low-voltage output channels can drive LEDs for synoptic panels or switches. Outputs can drive low voltage LED; if possible use high-ef ciency LED Eelectron cod.

LD00A01ACC (blue color) or LD00A11ACC (white color). There are also 8 blocks of logic functions freely con gurable by ETS (6 blocks available on IO62D01KNX). Device is equip- ped with KNX communication interface.
